Products ENV VS

*Dimensions are center line to center line

dridesign-env-vs-wh

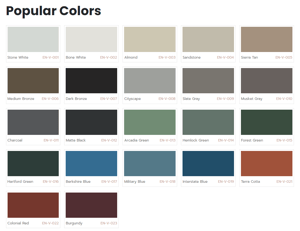

Stone White
Bone White
Almond
Sandstone
Sierra Tan
Medium Bronze
Dark Bronze
Cityscape
Slate Gray
Musket Gray
Charcoal

Matte Black
Arcadia Green
Hemlock Green
Forest Green
Hartford Green
Berkshire Blue
Military Blue
Interstate Blue
Terra Cotta
Colonial Red
Burgundy

Silver*
Copper Wire*
Champagne*
Weathered Zinc*

*Indicates a Mica paint

TAILORED TO MEET YOUR VISION

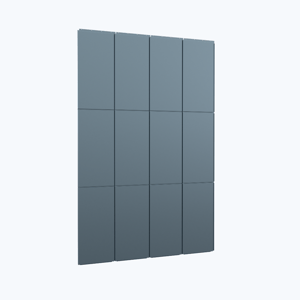

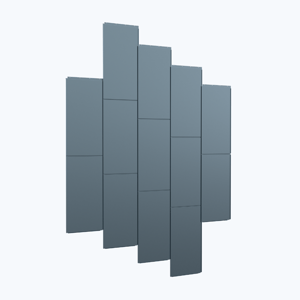

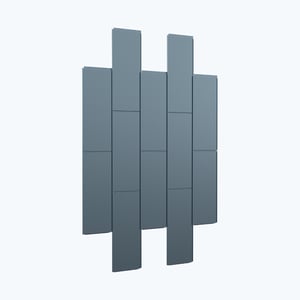

The EN-V VS Series offers a range of panel layout options for you to select from, including Stacked, Vertical Stagger, 1/2 Horizontal Stagger, 1/3 Horizontal Stagger, and 1/4 Horizontal Stagger.

PICK FROM 6 DIFFERENT PANEL SIZES

We offer six panel size variations. Optimized to align perfectly with our engineered-to-value collection, tailored to match your budget requirements.

1 ¼” nominal

Aluminum

.080”

1/2" Horizontal

5/8" Vertical

70% PVDF | AAMA 2605 Standards

<2 pounds per square foot

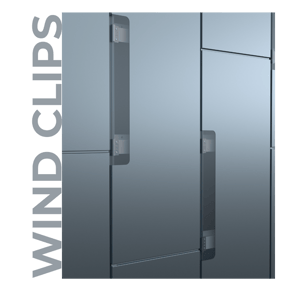

EN-V VS Panels require the installation of wind clips.

Wind Clips must be positioned no further than 24" on center, oriented to the left side of the panel.
Must be installed onto a minimum of 5/8" plywood or a minimum 18-gauge hat-channel at all panel attachment points, including wind clip attachment points.

Downloads

EN-V VS Series

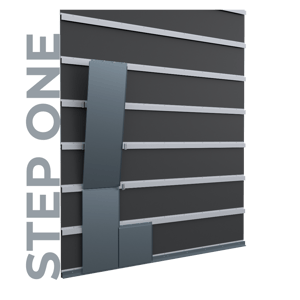

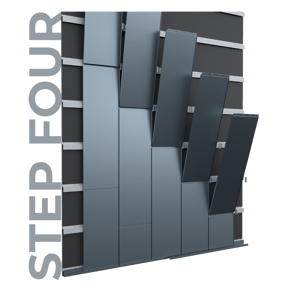

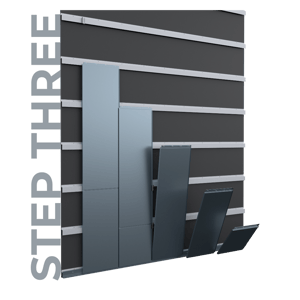

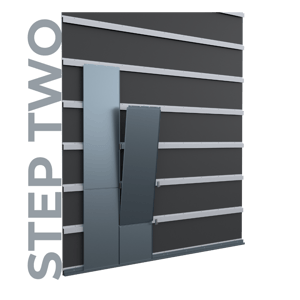

EN-V VS INSTALLATION SEQUENCE

VERTICAL EN-V VS SERIES PANELS ARE NOT COMPATIBLE FOR INTEGRATION WITH OUR HORIZONTAL EN‐V A80 SERIES PANELS WITHIN THE SAME SYSTEM. DO NOT USE THE PANELS IN THIS MANNER.

Technical Information
